Northumbria
- Public Water Supply: 98%
- Industrial: 2%
- Agriculture: 0%
- Other: 0%
- Amenity: 0%
- Public Water Supply: 99%
- Industrial: 1%
- Agriculture: 0%
- Other: 0%
- Amenity: 0%
- Public Water Supply: 17 Ml/d
- Agriculture: <1 Ml/d
- Industrial: <1 Ml/d
- All numbers are indicative, do not include proposed catchment actions (e.g. 2024 Water Resources Management Plans), are based on consumptive abstraction, and are subject to local review
- Licences that are less than 20% consumptive have been filtered out, but may require action after local review
- If no abstraction reductions are identified, abstraction may still need to reduce once local data and information has been considered
- If a licence has a "Hands off Flow" (HOF) condition it may already have the appropriate level of constraint
- Public Water Supply: 99%
- Industrial: 1%
- Other: 0%
- Agriculture: 0%
- Public Water Supply: 98%
- Industrial: 2%
- Other: 0%
- Agriculture: 0%
- All numbers are indicative, do not include proposed catchment actions (e.g. 2024 Water Resources Management Plans), are based on consumptive abstraction, and are subject to local review
- Licences that are less than 20% consumptive have been filtered out, but may require action after local review
- If no abstraction reductions are identified, abstraction may still need to reduce once local data and information has been considered
- If a licence has a "Hands off Flow" (HOF) condition it may already have the appropriate level of constraint
Northumberland Rivers
Accessible version here

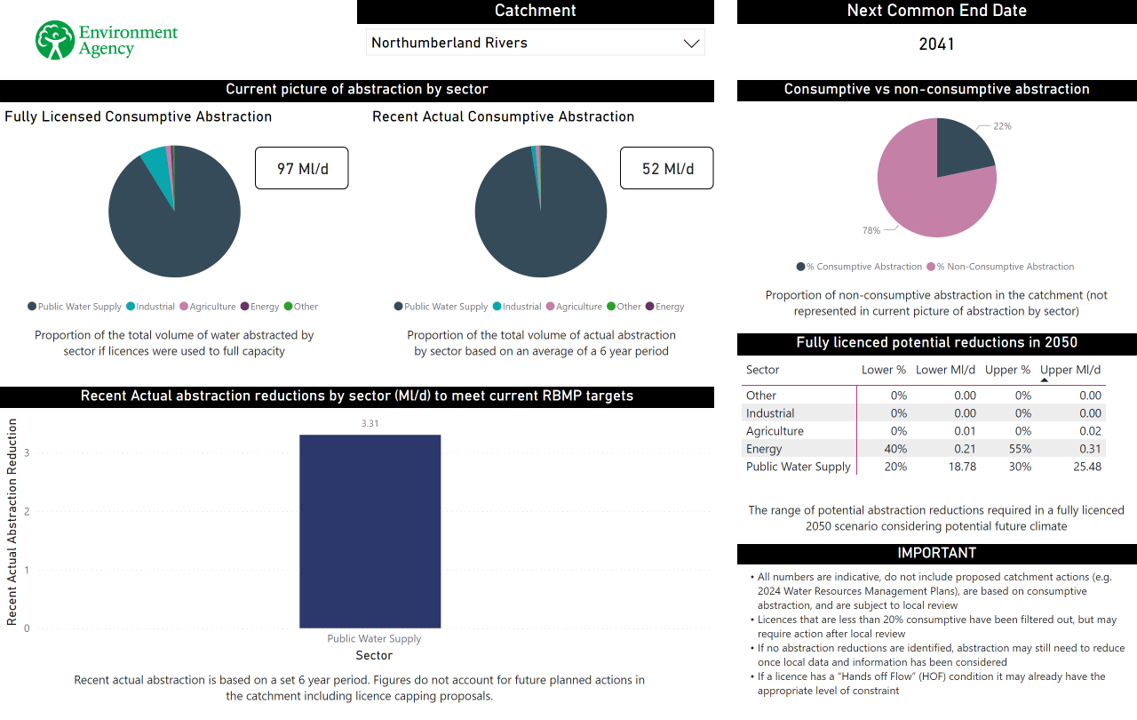

Catchment Summary Northumberland Rivers
1. Catchment Information
Catchment: Northumberland Rivers
Next Common End Date: 2041
2. Current Picture of Abstraction by Sector
Fully Licensed Consumptive Abstraction: 97 Ml/d
Proportion of the total volume of water abstracted by sector if licences were used to full capacity:
- Public Water Supply: 91%
- Industrial: 7%
- Agriculture: 1%
- Energy: 1%
- Other: 0%
Recent Actual Consumptive Abstraction: 52 Ml/d
Proportion of the total volume of actual abstraction by sector based on an average of a 6 year period:
- Public Water Supply: 98%
- Industrial: 1%
- Energy: 0%
- Other: 0%
- Agriculture: 1%
3. Consumptive vs Non-Consumptive Abstraction
Proportion of non-consumptive abstraction in the catchment (not represented in current picture of abstraction by sector):
- Consumptive Abstraction: 22%
- Non-Consumptive Abstraction: 78%
4. Recent Actual Abstraction Reductions by Sector (ML/d) to Meet Current RBMP Targets
- Public Water Supply: 3
Recent actual abstraction is based on a set 6 year period. Figures do not account for future planned actions in the catchment including licence capping proposals.
5. The range of potential abstraction reductions required in a fully licensed 2050 scenario considering potential future climate
Sector | Lower % | Lower Ml/d | Upper % | Upper Ml/d |
Other | 0% | 0 | 0% | 0 |
Industrial | 0% | 0 | 0% | 0 |
Agriculture | 0% | <1 | 0% | <1 |
Energy | 40% | <1 | 55% | <1 |
Public Water Supply | 20% | 19 | 30% | 25 |
6. Important Notes
- All numbers are indicative, do not include proposed catchment actions (e.g. 2024 Water Resources Management Plans), are based on consumptive abstraction, and are subject to local review
- Licences that are less than 20% consumptive have been filtered out, but may require action after local review
- If no abstraction reductions are identified, abstraction may still need to reduce once local data and information has been considered
- If a licence has a "Hands off Flow" (HOF) condition it may already have the appropriate level of constraint
Tees
Accessible version here

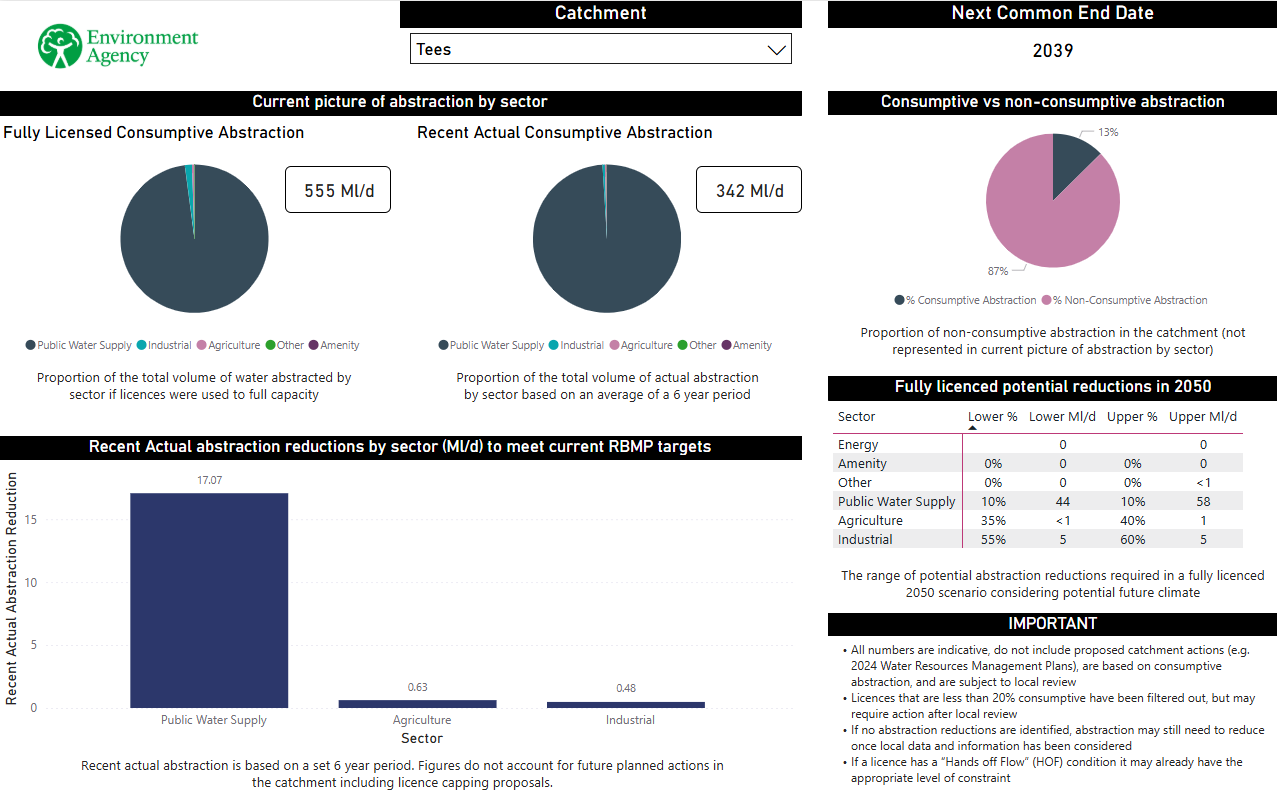

Catchment Summary Tees
1. Catchment Information
Catchment: Tees
Next Common End Date: 2039
2. Current Picture of Abstraction by Sector
Fully Licensed Consumptive Abstraction: 555 Ml/d
Proportion of the total volume of water abstracted by sector if licences were used to full capacity:
Recent Actual Consumptive Abstraction: 342 Ml/d
Proportion of the total volume of actual abstraction by sector based on an average of a 6 year period:
3. Consumptive vs Non-Consumptive Abstraction
Proportion of non-consumptive abstraction in the catchment (not represented in current picture of abstraction by sector):
- Consumptive Abstraction: 13%
- Non-Consumptive Abstraction: 87%
4. Recent Actual Abstraction Reductions by Sector (ML/d) to Meet Current RBMP Targets
Recent actual abstraction is based on a set 6 year period. Figures do not account for future planned actions in the catchment including licence capping proposals.
5. The range of potential abstraction reductions required in a fully licensed 2050 scenario considering potential future climate
Sector | Lower % | Lower Ml/d | Upper % | Upper Ml/d |
Amenity | 0% | 0 | 0% | 0 |
Other | 0% | 0 | 0% | <1 |
Agriculture | 35% | <1 | 40% | 1 |
Industrial | 55% | 5 | 60% | 5 |
Public Water Supply | 10% | 44 | 10% | 58 |
6. Important Notes
Tyne
Accessible version here

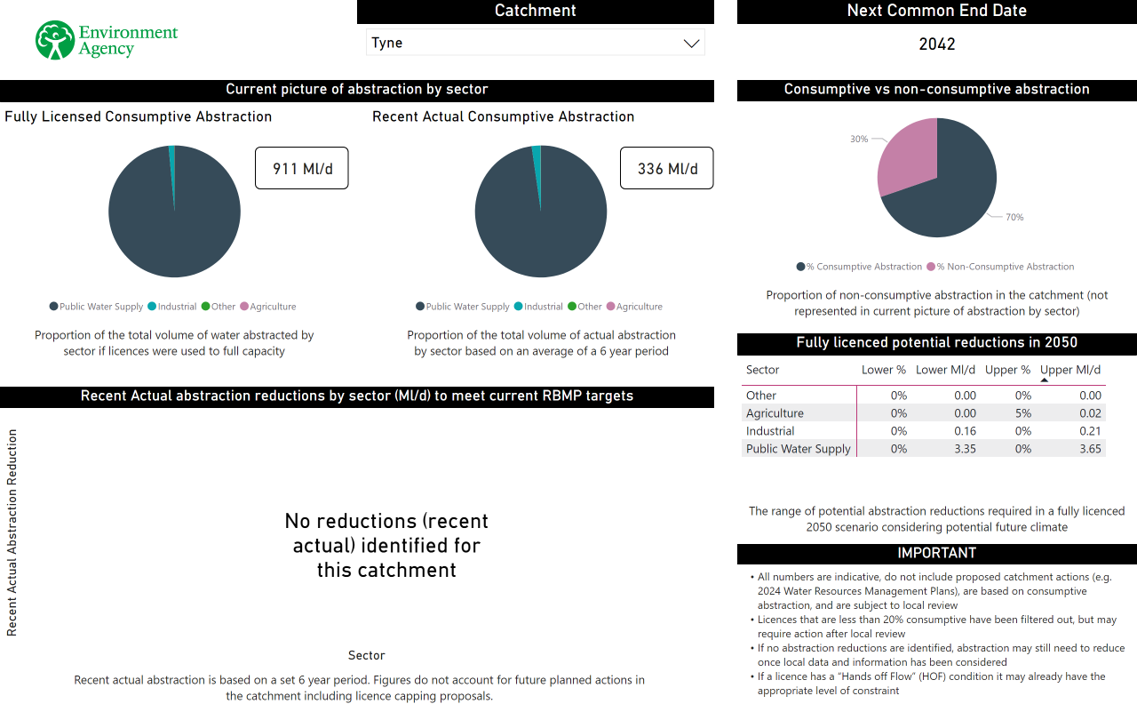

Catchment Summary Tyne
1. Catchment Information
Catchment: Tyne
Next Common End Date: 2042
2. Current Picture of Abstraction by Sector
Fully Licensed Consumptive Abstraction: 911 Ml/d
Proportion of the total volume of water abstracted by sector if licences were used to full capacity:
Recent Actual Consumptive Abstraction: 336 Ml/d
Proportion of the total volume of actual abstraction by sector based on an average of a 6 year period:
3. Consumptive vs Non-Consumptive Abstraction
Proportion of non-consumptive abstraction in the catchment (not represented in current picture of abstraction by sector):
- Consumptive Abstraction: 30%
- Non-Consumptive Abstraction: 70%
4. Recent Actual Abstraction Reductions by Sector (ML/d) to Meet Current RBMP Targets
Recent actual abstraction is based on a set 6 year period. Figures do not account for future planned actions in the catchment including licence capping proposals.
No reductions (recent actual) identified for this catchment
5. The range of potential abstraction reductions required in a fully licensed 2050 scenario considering potential future climate
Sector | Lower % | Lower Ml/d | Upper % | Upper Ml/d |
Other | 0% | 0 | 0% | 0 |
Agriculture | 0% | 0 | 5% | <1 |
Industrial | 0% | <1 | 0% | <1 |
Public Water Supply | 0% | 3 | 0% | 4 |
6. Important Notes
Wear
Accessible version here

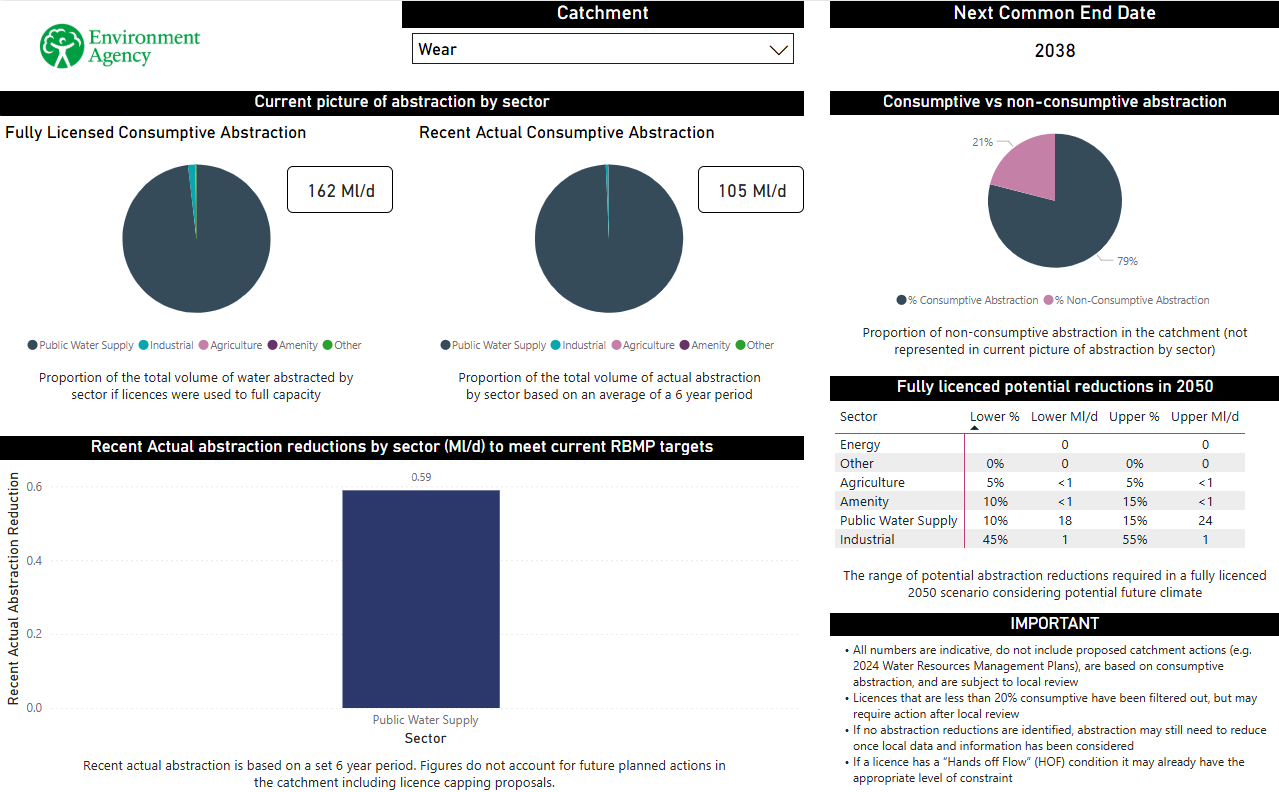

Catchment Summary Wear
1. Catchment Information
Catchment: Wear
Next Common End Date: 2038
2. Current Picture of Abstraction by Sector
Fully Licensed Consumptive Abstraction: 162 ML/d
Proportion of the total volume of water abstracted by sector if licences were used to full capacity:
• Public Water Supply: 98%
• Industrial: 2%
• Agriculture: 0%
• Amenity: 0%
• Other: 0%
Recent Actual Consumptive Abstraction: 105 ML/d
Proportion of the total volume of actual abstraction by sector based on an average of a 6 year period:
• Public Water Supply: 99%
• Industrial: 1%
• Agriculture: 0%
• Amenity: 0%
• Other: 0%
3. Consumptive vs Non-Consumptive Abstraction
Proportion of non-consumptive abstraction in the catchment (not represented in current picture of abstraction by sector):
• Consumptive Abstraction: 21%
• Non-Consumptive Abstraction: 79%
4. Recent Actual Abstraction Reductions by Sector (ML/d) to Meet Current RBMP Targets
• Public Water Supply: <1 ML/d
Recent actual abstraction is based on a set 6 year period. Figures do not account for future planned actions in the catchment including licence capping proposals.
5. The range of potential abstraction reductions required in a fully licensed 2050 scenario considering potential future climate
Sector | Lower % | Lower ML/d | Upper % | Upper ML/d |
Other | 0% | 0 | 0% | 0 |
Agriculture | 5% | <1 | 5% | <1 |
Amenity | 10% | <1 | 15% | <1 |
Industrial | 45% | 1 | 55% | 1 |
Public Water Supply | 10% | 18 | 15% | 24 |
6. Important Notes
• All numbers are indicative, do not include proposed catchment actions (e.g. 2024 Water Resources Management Plans), are based on consumptive abstraction, and are subject to local review
• Licences that are less than 20% consumptive have been filtered out, but may require action after local review
• If no abstraction reductions are identified, abstraction may still need to reduce once local data and information has been considered
• If a licence has a “Hands off Flow” (HOF) condition it may already have the appropriate level of constraint
