North West
- Public Water Supply: 82%
- Industrial: 9%
- Energy: 8%
- Agriculture: 1%
- Other: 0%
- Amenity: 0%
- Public Water Supply: 96%
- Industrial: 4%
- Agriculture: 1%
- Other: 0%
- Amenity: 0%
- Energy: 0%
- Industrial: <1 Ml/d
- Agriculture: <1 Ml/d
- All numbers are indicative, do not include proposed catchment actions (e.g. 2024 Water Resources Management Plans), are based on consumptive abstraction, and are subject to local review
- Licences that are less than 20% consumptive have been filtered out, but may require action after local review
- If no abstraction reductions are identified, abstraction may still need to reduce once local data and information has been considered
- If a licence has a "Hands off Flow" (HOF) condition it may already have the appropriate level of constraint
- Public Water Supply: ~99%
- Industrial: ~1%
- Agriculture: 0%
- Amenity: 0%
- Other: 0%
- Public Water Supply: ~99%
- Agriculture: <1%
- Industrial: <1%
- Amenity: <1%
- Other: 0%
- Consumptive Abstraction: 100%
- Non-Consumptive Abstraction: 0%
- Public Water Supply: 3.56 Ml/d
- Agriculture: 0.23 Ml/d
- Industrial: 0.12 Ml/d
- Amenity: 0.01 Ml/d
- Other: 0 Ml/d
- All numbers are indicative, do not include proposed catchment actions (e.g. 2024 Water Resources Management Plans), are based on consumptive abstraction, and are subject to local review.
- Licences that are less than 20% consumptive have been filtered out, but may require action after local review.
- If no abstraction reductions are identified, abstraction may still need to reduce once local data and information has been considered.
- If a licence has a Hands off Flow (HOF) condition it may already have the appropriate level of constraint.

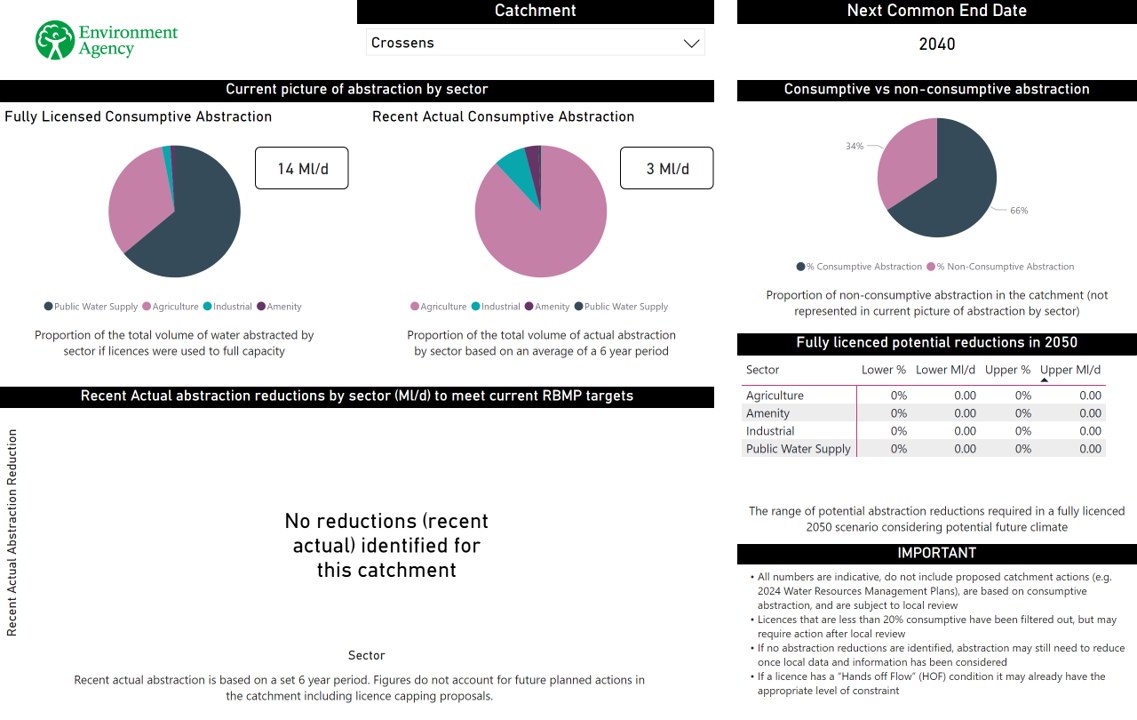

Crossens
Accessible version here
Catchment Summary Crossens
1. Catchment Information
Catchment: Crossens
Next Common End Date: 2040
2. Current Picture of Abstraction by Sector
Fully Licensed Consumptive Abstraction: 14 Ml/d
Proportion of the total volume of water abstracted by sector if licences were used to full capacity:
• Public Water Supply: 64%
• Agriculture: 33%
• Industrial: 2%
• Amenity: 1%
Recent Actual Consumptive Abstraction: 3 Ml/d
Proportion of the total volume of actual abstraction by sector based on an average of a 6 year period:
• Agriculture: 88%
• Industrial: 8%
• Amenity: 4%
• Public Water Supply: 1%
3. Consumptive vs Non-Consumptive Abstraction
• Consumptive Abstraction: 66%
• Non-Consumptive Abstraction: 34%
Proportion of non-consumptive abstraction in the catchment (not represented in current picture of abstraction by sector)
4. Recent Actual Abstraction Reductions by Sector (ML/d) to Meet Current RBMP Targets
No reductions (recent actual) identified for this catchment
Recent actual abstraction is based on a set 6 year period. Figures do not account for future planned actions in the catchment including licence capping proposals.
5. The range of potential abstraction reductions required in a fully licensed 2050 scenario considering potential future climate
Sector | Lower % | Lower Ml/d | Upper % | Upper Ml/d |
Agriculture | 0% | 0 | 0% | 0 |
Amenity | 0% | 0 | 0% | 0 |
Industrial | 0% | 0 | 0% | 0 |
Public Water Supply | 0% | 0 | 0% | 0 |
6. Important Notes
• All numbers are indicative, do not include proposed catchment actions (e.g. 2024 Water Resources Management Plans), are based on consumptive abstraction, and are subject to local review
• Licences that are less than 20% consumptive have been filtered out, but may require action after local review
• If no abstraction reductions are identified, abstraction may still need to reduce once local data and information has been considered
• If a licence has a “Hands off Flow” (HOF) condition it may already have the appropriate level of constraint
Derwent
Accessible version here
Catchment Summary Derwent
1. Catchment Information
Catchment: Derwent
Next Common End Date: 2037
2. Current Picture of Abstraction by Sector
Fully Licensed Consumptive Abstraction: 342 Ml/d
Proportion of the total volume of water abstracted by sector if licences were used to full capacity:
• Public Water Supply: 93%
• Agriculture: 5%
• Industrial: 1%
• Other: 0%
• Amenity: 0%
Recent Actual Consumptive Abstraction: 289 Ml/d
Proportion of the total volume of actual abstraction by sector based on an average of a 6 year period:
• Public Water Supply: 96%
• Agriculture: 2%
• Industrial: 1%
• Other: 0%
• Amenity: 0%
3. Consumptive vs Non-Consumptive Abstraction
• Consumptive Abstraction: 24%
• Non-Consumptive Abstraction: 76%
Proportion of non-consumptive abstraction in the catchment (not represented in current picture of abstraction by sector)
4. Recent Actual Abstraction Reductions by Sector (ML/d) to Meet Current RBMP Targets
Recent actual abstraction is based on a set 6 year period. Figures do not account for future planned actions in the catchment including licence capping proposals.
• Public Water Supply: 213 Ml/d
• Agriculture: <1 Ml/d
5. The range of potential abstraction reductions required in a fully licensed 2050 scenario considering potential future climate
Sector | Lower % | Lower Ml/d | Upper % | Upper Ml/d |
Industrial | 0% | <1 | 0% | <1 |
Amenity | 10% | <1 | 25% | <1 |
Other | 10% | <1 | 15% | <1 |
Agriculture | 20% | 3 | 20% | 3 |
Public Water Supply | 80% | 257 | 85% | 272 |
6. Important Notes
• All numbers are indicative, do not include proposed catchment actions (e.g. 2024 Water Resources Management Plans), are based on consumptive abstraction, and are subject to local review
• Licences that are less than 20% consumptive have been filtered out, but may require action after local review
• If no abstraction reductions are identified, abstraction may still need to reduce once local data and information has been considered
• If a licence has a “Hands off Flow” (HOF) condition it may already have the appropriate level of constraint
Derwent and West Cumbria
Accessible version here
Catchment Summary Derwent & West Cumbria
1. Catchment Information
Catchment: Derwent & West Cumbria
Next Common End Date: 2038
2. Current Picture of Abstraction by Sector
Fully Licensed Consumptive Abstraction: 449 Ml/d
Proportion of the total volume of water abstracted by sector if licences were used to full capacity:
• Public Water Supply: 77%
• Industrial: 23%
• Other: 0%
• Agriculture: 0%
Recent Actual Consumptive Abstraction: 306 Ml/d
Proportion of the total volume of actual abstraction by sector based on an average of a 6 year period:
• Public Water Supply: 83%
• Industrial: 17%
• Other: 0%
• Agriculture: 0%
3. Consumptive vs Non-Consumptive Abstraction
• Consumptive Abstraction: 45%
• Non-Consumptive Abstraction: 55%
Proportion of non-consumptive abstraction in the catchment (not represented in current picture of abstraction by sector)
4. Recent Actual Abstraction Reductions by Sector (ML/d) to Meet Current RBMP Targets
Recent actual abstraction is based on a set 6 year period. Figures do not account for future planned actions in the catchment including licence capping proposals.
• No reductions (recent actual) identified for this catchment
5. The range of potential abstraction reductions required in a fully licensed 2050 scenario considering potential future climate
Sector | Lower % | Lower Ml/d | Upper % | Upper Ml/d |
Agriculture | 0% | 0 | 5% | <1 |
Other | 0% | 0 | 100% | 1 |
Public Water Supply | 5% | 22 | 5% | 22 |
Industrial | 35% | 36 | 35% | 37 |
6. Important Notes
• All numbers are indicative, do not include proposed catchment actions (e.g. 2024 Water Resources Management Plans), are based on consumptive abstraction, and are subject to local review
• Licences that are less than 20% consumptive have been filtered out, but may require action after local review
• If no abstraction reductions are identified, abstraction may still need to reduce once local data and information has been considered
• If a licence has a “Hands off Flow” (HOF) condition it may already have the appropriate level of constraint

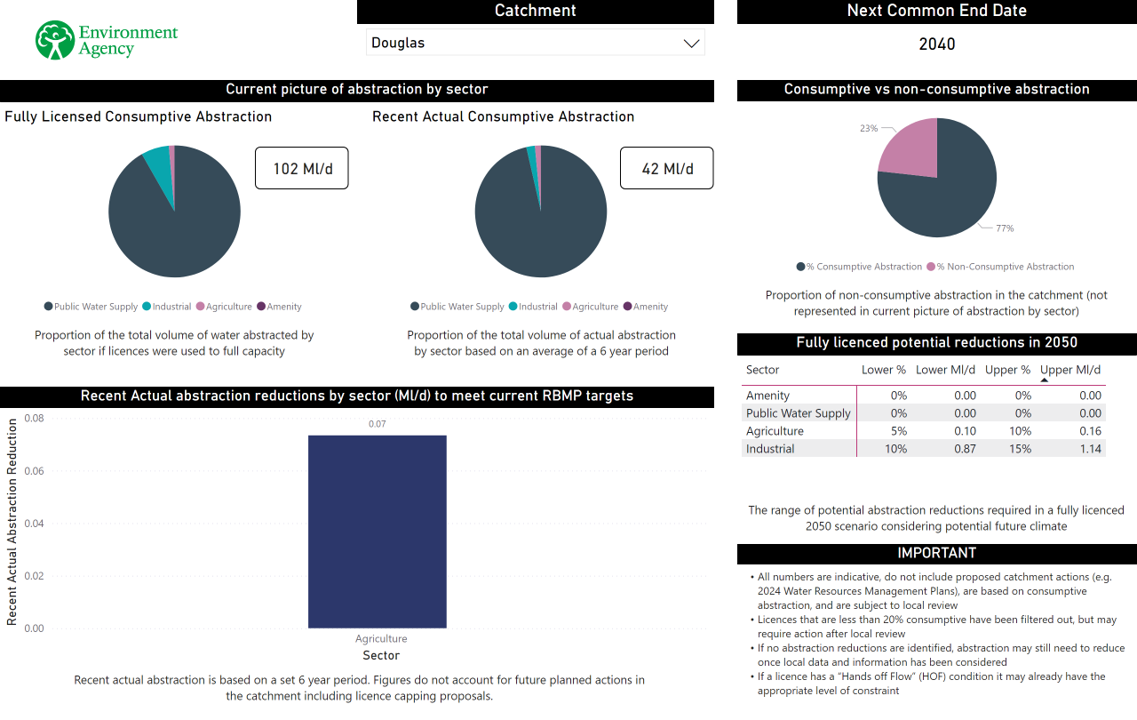

Douglas
Accessible version here
Catchment Summary Douglas
1. Catchment Information
Catchment: Douglas
Next Common End Date: 2040
2. Current Picture of Abstraction by Sector
Fully Licensed Consumptive Abstraction: 102 Ml/d
Proportion of the total volume of water abstracted by sector if licences were used to full capacity:
• Public Water Supply: 92%
• Industrial: 7%
• Agriculture: 1%
• Amenity: 0%
Recent Actual Consumptive Abstraction: 42 Ml/d
Proportion of the total volume of actual abstraction by sector based on an average of a 6 year period:
• Public Water Supply: 96%
• Industrial: 2%
• Agriculture: 1%
• Amenity: 0%
3. Consumptive vs Non-Consumptive Abstraction
• Consumptive Abstraction: 23%
• Non-Consumptive Abstraction: 77%
Proportion of non-consumptive abstraction in the catchment (not represented in current picture of abstraction by sector)
4. Recent Actual Abstraction Reductions by Sector (ML/d) to Meet Current RBMP Targets
Recent actual abstraction is based on a set 6 year period. Figures do not account for future planned actions in the catchment including licence capping proposals.
• Agriculture: <1 Ml/d
5. The range of potential abstraction reductions required in a fully licensed 2050 scenario considering potential future climate
Sector | Lower % | Lower Ml/d | Upper % | Upper Ml/d |
Amenity | 0% | 0 | 0% | 0 |
Public Water Supply | 0% | 0 | 0% | 0 |
Agriculture | 5% | <1 | 10% | <1 |
Industrial | 10% | <1 | 15% | 1 |
6. Important Notes
• All numbers are indicative, do not include proposed catchment actions (e.g. 2024 Water Resources Management Plans), are based on consumptive abstraction, and are subject to local review
• Licences that are less than 20% consumptive have been filtered out, but may require action after local review
• If no abstraction reductions are identified, abstraction may still need to reduce once local data and information has been considered
• If a licence has a “Hands off Flow” (HOF) condition it may already have the appropriate level of constraint

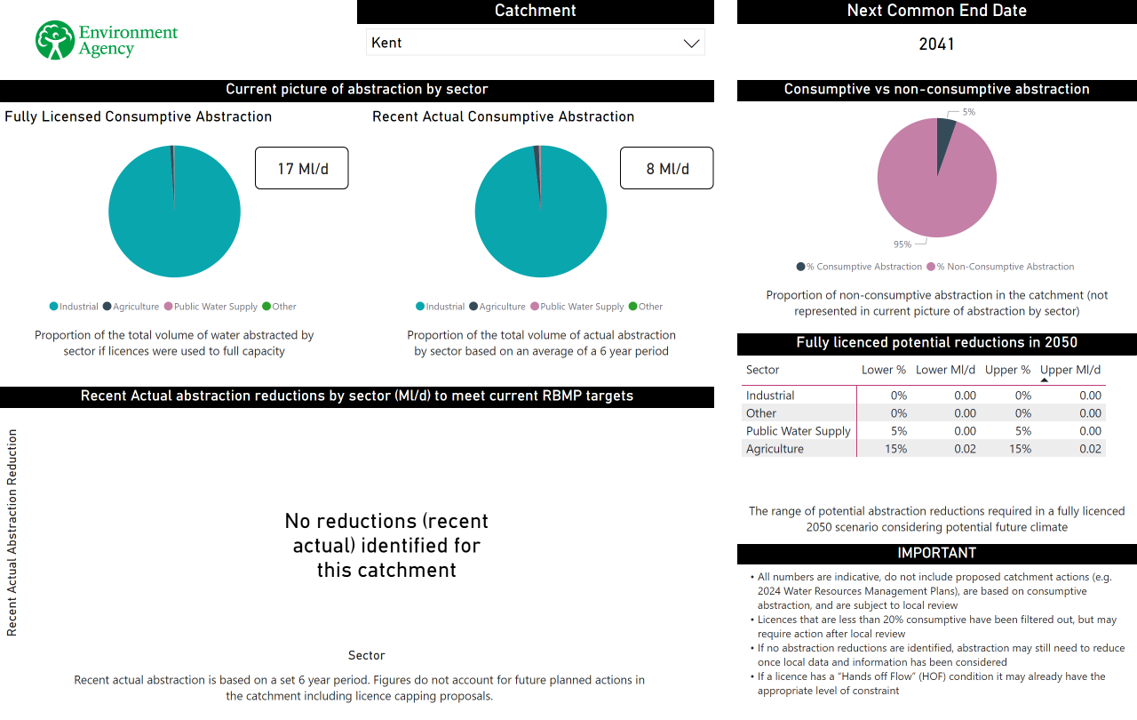

Kent
Accessible version here
Catchment Summary Kent
1. Catchment Information
Catchment: Kent
Next Common End Date: 2041
2. Current Picture of Abstraction by Sector
Fully Licensed Consumptive Abstraction: 17 ML/d
Proportion of the total volume of water abstracted by sector if licences were used to full capacity:
• Industrial: 99%
• Agriculture: 1%
• Public Water Supply: 0%
• Other: 0%
Recent Actual Consumptive Abstraction: 8 ML/d
Proportion of the total volume of actual abstraction by sector based on an average of a 6 year period:
• Industrial: 98%
• Agriculture: 1%
• Public Water Supply: 0%
• Other: 0%
3. Consumptive vs Non-Consumptive Abstraction
Proportion of non-consumptive abstraction in the catchment (not represented in current picture of abstraction by sector):
• Consumptive Abstraction: 5%
• Non-Consumptive Abstraction: 95%
4. Recent Actual Abstraction Reductions by Sector (ML/d) to Meet Current RBMP Targets
No reductions (recent actual) identified for this catchment
5. The range of potential abstraction reductions required in a fully licensed 2050 scenario considering potential future climate
Sector | Lower % | Lower ML/d | Upper % | Upper ML/d |
Industrial | 0% | 0 | 0% | 0 |
Other | 0% | 0 | 0% | 0 |
Public Water Supply | 5% | 0 | 5% | 0 |
Agriculture | 15% | <1 | 15% | <1 |
6. Important Notes
• All numbers are indicative, do not include proposed catchment actions (e.g. 2024 Water Resources Management Plans), are based on consumptive abstraction, and are subject to local review
• Licences that are less than 20% consumptive have been filtered out, but may require action after local review
• If no abstraction reductions are identified, abstraction may still need to reduce once local data and information has been considered
• If a licence has a "Hands off Flow" (HOF) condition it may already have the appropriate level of constraint
Leven, Crake and Duddon
Accessible version here
Catchment Summary Leven, Crake & Duddon
1. Catchment Information
Catchment: Leven, Crake & Duddon
Next Common End Date: 2041
2. Current Picture of Abstraction by Sector
Fully Licensed Consumptive Abstraction: 187 ML/d
Proportion of the total volume of water abstracted by sector if licences were used to full capacity:
• Public Water Supply: 81%
• Other: 10%
• Industrial: 7%
• Agriculture: 2%
Recent Actual Consumptive Abstraction: 68 ML/d
Proportion of the total volume of actual abstraction by sector based on an average of a 6 year period:
• Public Water Supply: 82%
• Industrial: 8%
• Other: 8%
• Agriculture: 2%
3. Consumptive vs Non-Consumptive Abstraction
Proportion of non-consumptive abstraction in the catchment (not represented in current picture of abstraction by sector):
• Consumptive Abstraction: 9%
• Non-Consumptive Abstraction: 91%
4. Recent Actual Abstraction Reductions by Sector (ML/d) to Meet Current RBMP Targets
No reductions (recent actual) identified for this catchment
5. The range of potential abstraction reductions required in a fully licensed 2050 scenario considering potential future climate
Sector | Lower % | Lower ML/d | Upper % | Upper ML/d |
Agriculture | 0% | 0 | 0% | 0 |
Industrial | 0% | 0 | 0% | 0 |
Other | 0% | 0 | 0% | 0 |
Public Water Supply | 0% | 0 | 0% | 0 |
6. Important Notes
• All numbers are indicative, do not include proposed catchment actions (e.g. 2024 Water Resources Management Plans), are based on consumptive abstraction, and are subject to local review
• Licences that are less than 20% consumptive have been filtered out, but may require action after local review
• If no abstraction reductions are identified, abstraction may still need to reduce once local data and information has been considered
• If a licence has a "Hands off Flow" (HOF) condition it may already have the appropriate level of constraint
Lune
Accessible version here
Catchment Summary Lune
1. Catchment Information
Catchment: Lune
Next Common End Date: 2041
2. Current Picture of Abstraction by Sector
Fully Licensed Consumptive Abstraction: 4330 ML/d
Proportion of the total volume of water abstracted by sector if licences were used to full capacity:
• Industrial: 100%
• Public Water Supply: 0%
• Agriculture: 0%
• Other: 0%
• Amenity: 0%
Recent Actual Consumptive Abstraction: 3884 ML/d
Proportion of the total volume of actual abstraction by sector based on an average of a 6 year period:
• Industrial: 100%
• Agriculture: 0%
• Public Water Supply: 0%
• Other: 0%
• Amenity: 0%
3. Consumptive vs Non-Consumptive Abstraction
Proportion of non-consumptive abstraction in the catchment (not represented in current picture of abstraction by sector):
• Consumptive Abstraction: 48%
• Non-Consumptive Abstraction: 52%
4. Recent Actual Abstraction Reductions by Sector (ML/d) to Meet Current RBMP Targets
No reductions (recent actual) identified for this catchment
5. The range of potential abstraction reductions required in a fully licensed 2050 scenario considering potential future climate
Sector | Lower % | Lower ML/d | Upper % | Upper ML/d |
Agriculture | 0% | 0 | 0% | 0 |
Amenity | 0% | 0 | 0% | 0 |
Industrial | 0% | 0 | 0% | 0 |
Other | 0% | 0 | 0% | 0 |
Public Water Supply | 0% | 0 | 0% | 0 |
6. Important Notes
• All numbers are indicative, do not include proposed catchment actions (e.g. 2024 Water Resources Management Plans), are based on consumptive abstraction, and are subject to local review
• Licences that are less than 20% consumptive have been filtered out, but may require action after local review
• If no abstraction reductions are identified, abstraction may still need to reduce once local data and information has been considered
• If a licence has a "Hands off Flow" (HOF) condition it may already have the appropriate level of constraint

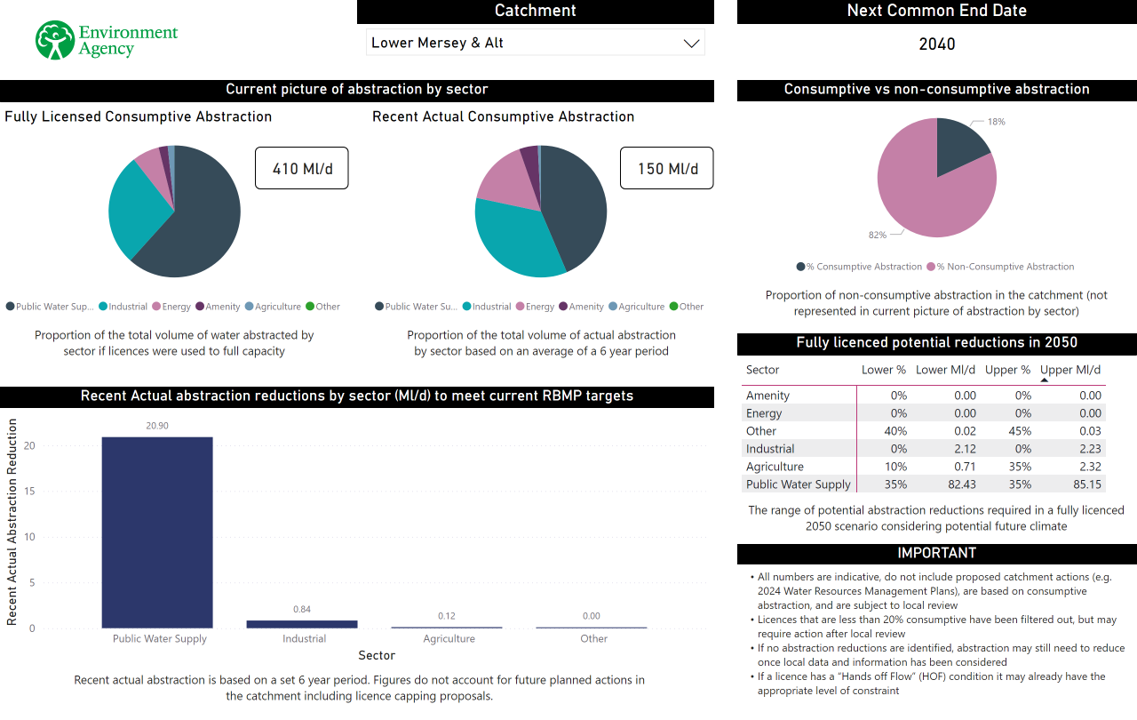

Lower Mersey and Alt
Accessible version here
Catchment Summary Lower Mersey & Alt
1. Catchment Information
Catchment: Lower Mersey & Alt
Next Common End Date: 2040
2. Current Picture of Abstraction by Sector
Fully Licensed Consumptive Abstraction: 410 ML/d
Proportion of the total volume of water abstracted by sector if licences were used to full capacity:
• Public Water Supply: 62%
• Industrial: 28%
• Energy: 7%
• Amenity: 2%
• Agriculture: 2%
• Other: 0%
Recent Actual Consumptive Abstraction: 150 ML/d
Proportion of the total volume of actual abstraction by sector based on an average of a 6 year period:
• Public Water Supply: 44%
• Industrial: 35%
• Energy: 16%
• Amenity: 5%
• Agriculture: 1%
• Other: 0%
3. Consumptive vs Non-Consumptive Abstraction
Proportion of non-consumptive abstraction in the catchment (not represented in current picture of abstraction by sector):
• Consumptive Abstraction: 18%
• Non-Consumptive Abstraction: 82%
4. Recent Actual Abstraction Reductions by Sector (ML/d) to Meet Current RBMP Targets
Sector: Public Water Supply — Reduction: 21 ML/d
Sector: Industrial — Reduction: <1 ML/d
Sector: Agriculture — Reduction: <1 ML/d
Sector: Other — Reduction: 0 ML/d
5. The range of potential abstraction reductions required in a fully licensed 2050 scenario considering potential future climate
Sector | Lower % | Lower ML/d | Upper % | Upper ML/d |
Amenity | 0% | 0 | 0% | 0 |
Energy | 0% | 0 | 0% | 0 |
Other | 40% | <1 | 45% | <1 |
Industrial | 0% | 2 | 0% | 2 |
Agriculture | 10% | <1 | 35% | 2 |
Public Water Supply | 35% | 82 | 35% | 85 |
6. Important Notes
• All numbers are indicative, do not include proposed catchment actions (e.g. 2024 Water Resources Management Plans), are based on consumptive abstraction, and are subject to local review
• Licences that are less than 20% consumptive have been filtered out, but may require action after local review
• If no abstraction reductions are identified, abstraction may still need to reduce once local data and information has been considered
• If a licence has a "Hands off Flow" (HOF) condition it may already have the appropriate level of constraint

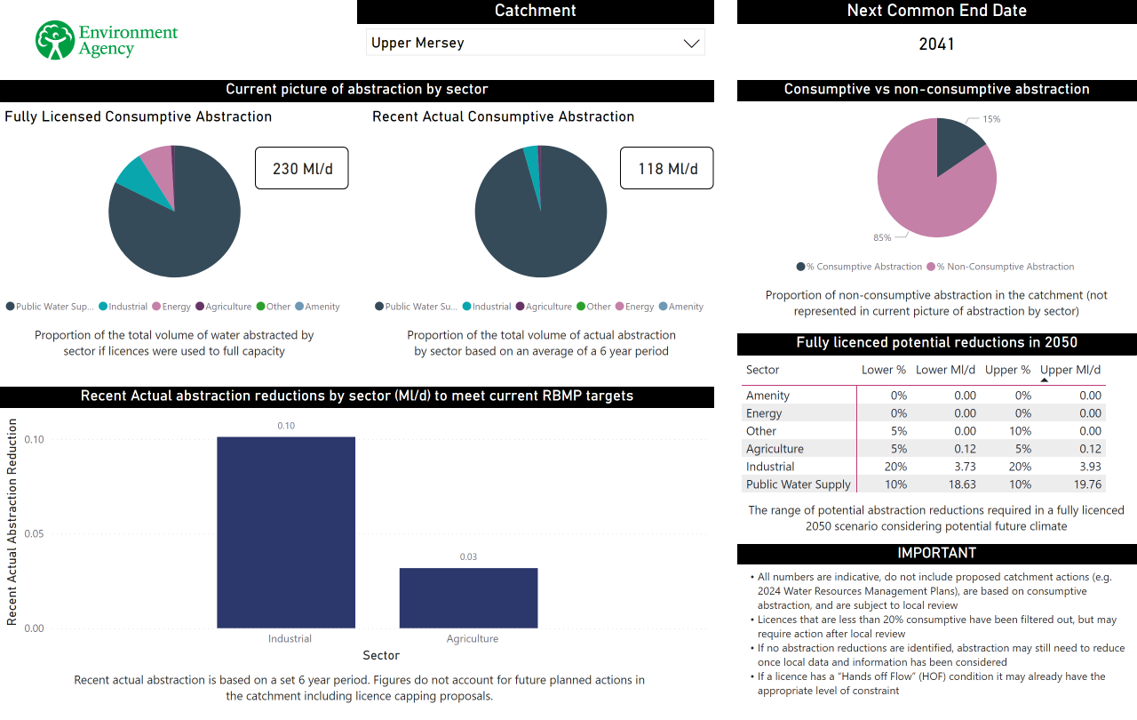

Upper Mersey
Accessible version here
Catchment Summary Upper Mersey
1. Catchment Information
Catchment: Upper Mersey
Next Common End Date: 2041
2. Current Picture of Abstraction by Sector
Fully Licensed Consumptive Abstraction: 230 Ml/d
Proportion of the total volume of water abstracted by sector if licences were used to full capacity:
Recent Actual Consumptive Abstraction: 118 Ml/d
Proportion of the total volume of actual abstraction by sector based on an average of a 6 year period:
3. Consumptive vs Non-Consumptive Abstraction
Proportion of non-consumptive abstraction in the catchment (not represented in current picture of abstraction by sector):
- Consumptive Abstraction: 15%
- Non-Consumptive Abstraction: 85%
4. Recent Actual Abstraction Reductions by Sector (ML/d) to Meet Current RBMP Targets
Recent actual abstraction is based on a set 6 year period. Figures do not account for future planned actions in the catchment including licence capping proposals.
5. The range of potential abstraction reductions required in a fully licensed 2050 scenario considering potential future climate
Sector | Lower % | Lower Ml/d | Upper % | Upper Ml/d |
Amenity | 0% | 0 | 0% | 0 |
Energy | 0% | 0 | 0% | 0 |
Other | 5% | 0 | 10% | <1 |
Agriculture | 5% | <1 | 5% | <1 |
Industrial | 20% | 4 | 20% | 4 |
Public Water Supply | 10% | 19 | 10% | 20 |
6. Important Notes

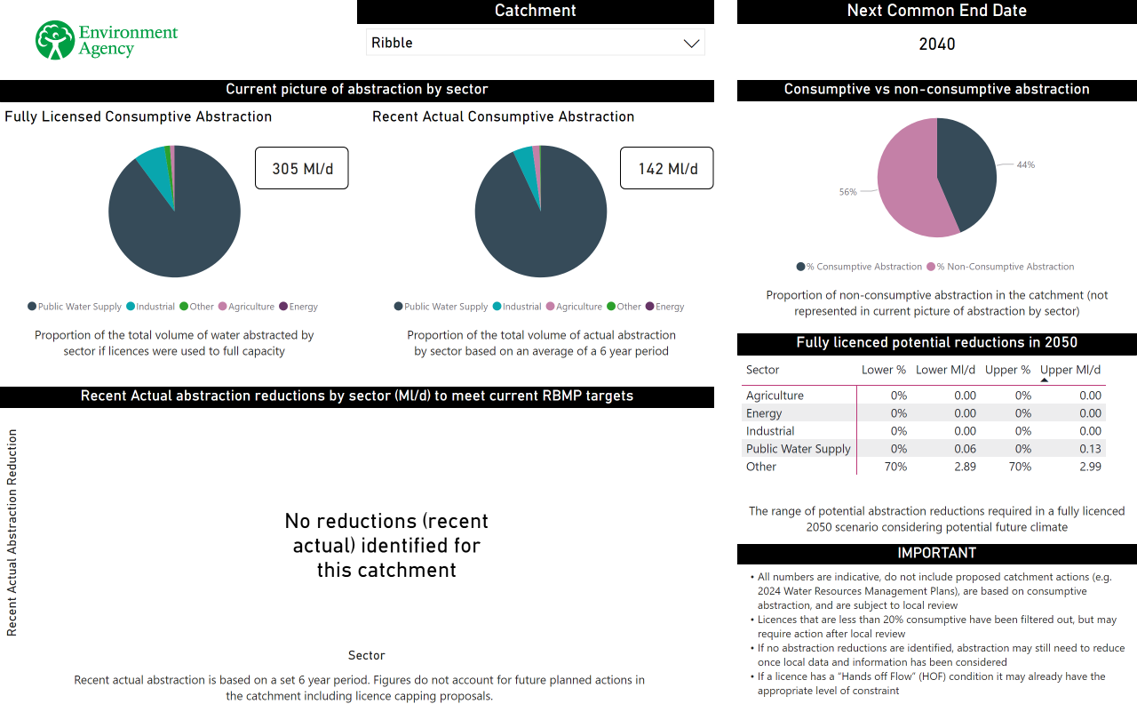

Ribble
Accessible version here
Catchment Summary Ribble
1. Catchment Information
Catchment: Ribble
Next Common End Date: 2040
2. Current Picture of Abstraction by Sector
Fully Licensed Consumptive Abstraction: 305 Ml/d
Proportion of the total volume of water abstracted by sector if licences were used to full capacity:
- Public Water Supply: 90%
- Industrial: 8%
- Other: 1%
- Agriculture: 1%
- Energy: 0%
Recent Actual Consumptive Abstraction: 142 Ml/d
Proportion of the total volume of actual abstraction by sector based on an average of a 6 year period:
- Public Water Supply: 93%
- Industrial: 5%
- Other: 0%
- Agriculture: 2%
- Energy: 0%
3. Consumptive vs Non-Consumptive Abstraction
Proportion of non-consumptive abstraction in the catchment (not represented in current picture of abstraction by sector):
- Consumptive Abstraction: 44%
- Non-Consumptive Abstraction: 56%
4. Recent Actual Abstraction Reductions by Sector (ML/d) to Meet Current RBMP Targets
No reductions (recent actual) identified for this catchment
Recent actual abstraction is based on a set 6 year period. Figures do not account for future planned actions in the catchment including licence capping proposals.
5. The range of potential abstraction reductions required in a fully licensed 2050 scenario considering potential future climate
Sector | Lower % | Lower Ml/d | Upper % | Upper Ml/d |
Agriculture | 0% | 0 | 0% | 0 |
Energy | 0% | 0 | 0% | 0 |
Industrial | 0% | 0 | 0% | 0 |
Public Water Supply | 0% | <1 | 0% | <1 |
Other | 70% | 3 | 70% | 3 |
6. Important Notes
- All numbers are indicative, do not include proposed catchment actions (e.g. 2024 Water Resources Management Plans), are based on consumptive abstraction, and are subject to local review
- Licences that are less than 20% consumptive have been filtered out, but may require action after local review
- If no abstraction reductions are identified, abstraction may still need to reduce once local data and information has been considered
- If a licence has a "Hands off Flow" (HOF) condition it may already have the appropriate level of constraint

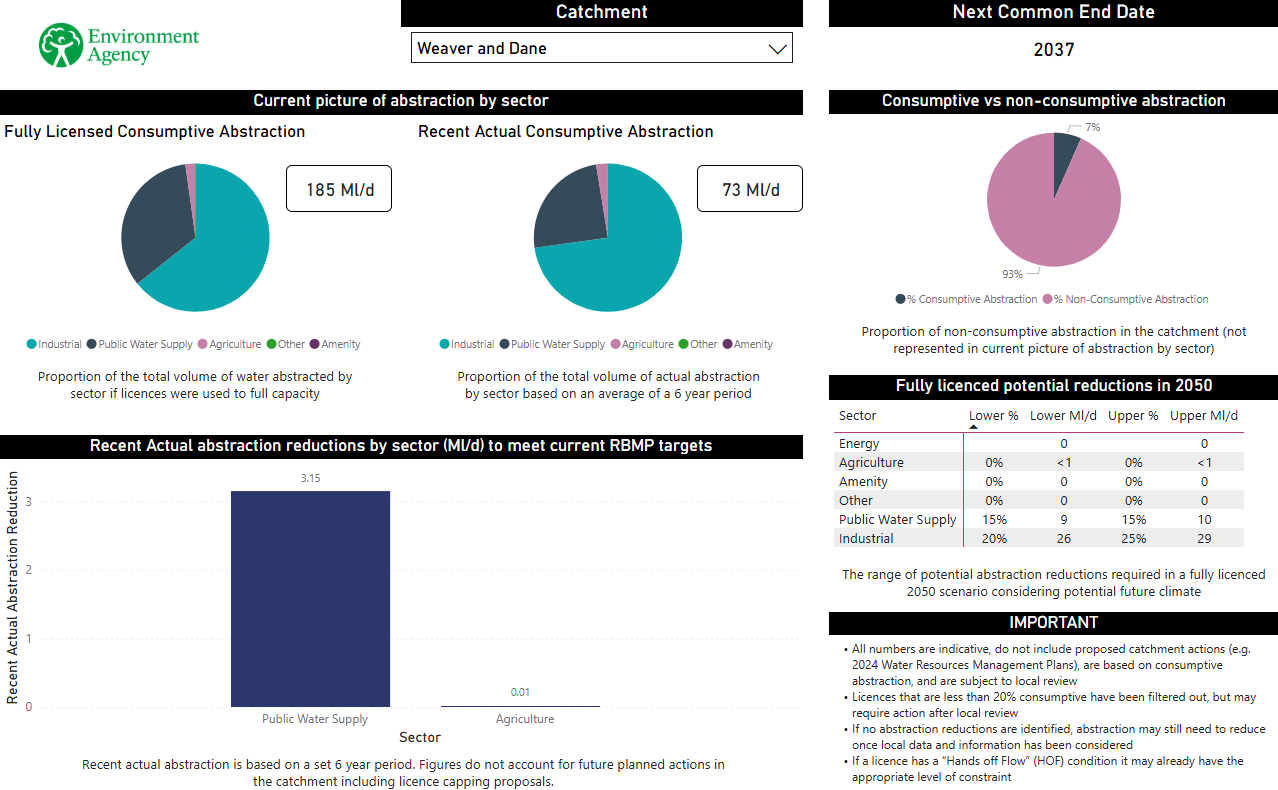

Weaver and Dane
Accessible version here
Catchment Summary Weaver and Dane
1. Catchment Information
Catchment: Weaver and Dane
Next Common End Date: 2037
2. Current Picture of Abstraction by Sector
Fully Licensed Consumptive Abstraction: 185 ML/d
Proportion of the total volume of water abstracted by sector if licences were used to full capacity:
• Industrial: 64%
• Public Water Supply: 33%
• Agriculture: 2%
• Other: 0%
• Amenity: 0%
Recent Actual Consumptive Abstraction: 73 ML/d
Proportion of the total volume of actual abstraction by sector based on an average of a 6 year period:
• Industrial: 73%
• Public Water Supply: 25%
• Agriculture: 3%
• Other: 0%
• Amenity: 0%
3. Consumptive vs Non-Consumptive Abstraction
Proportion of non-consumptive abstraction in the catchment (not represented in current picture of abstraction by sector):
• Consumptive Abstraction: 7%
• Non-Consumptive Abstraction: 93%
4. Recent Actual Abstraction Reductions by Sector (ML/d) to Meet Current RBMP Targets
• Public Water Supply: 3 ML/d
• Agriculture: <1 ML/d
Recent actual abstraction is based on a set 6 year period. Figures do not account for future planned actions in the catchment including licence capping proposals.
5. The range of potential abstraction reductions required in a fully licensed 2050 scenario considering potential future climate
Sector | Lower % | Lower ML/d | Upper % | Upper ML/d |
Amenity | 0% | 0 | 0% | 0 |
Other | 0% | 0 | 0% | 0 |
Agriculture | 0% | <1 | 0% | <1 |
Public Water Supply | 15% | 9 | 15% | 10 |
Industrial | 20% | 26 | 25% | 29 |
6. Important Notes
• All numbers are indicative, do not include proposed catchment actions (e.g. 2024 Water Resources Management Plans), are based on consumptive abstraction, and are subject to local review
• Licences that are less than 20% consumptive have been filtered out, but may require action after local review
• If no abstraction reductions are identified, abstraction may still need to reduce once local data and information has been considered
• If a licence has a “Hands off Flow” (HOF) condition it may already have the appropriate level of constraint

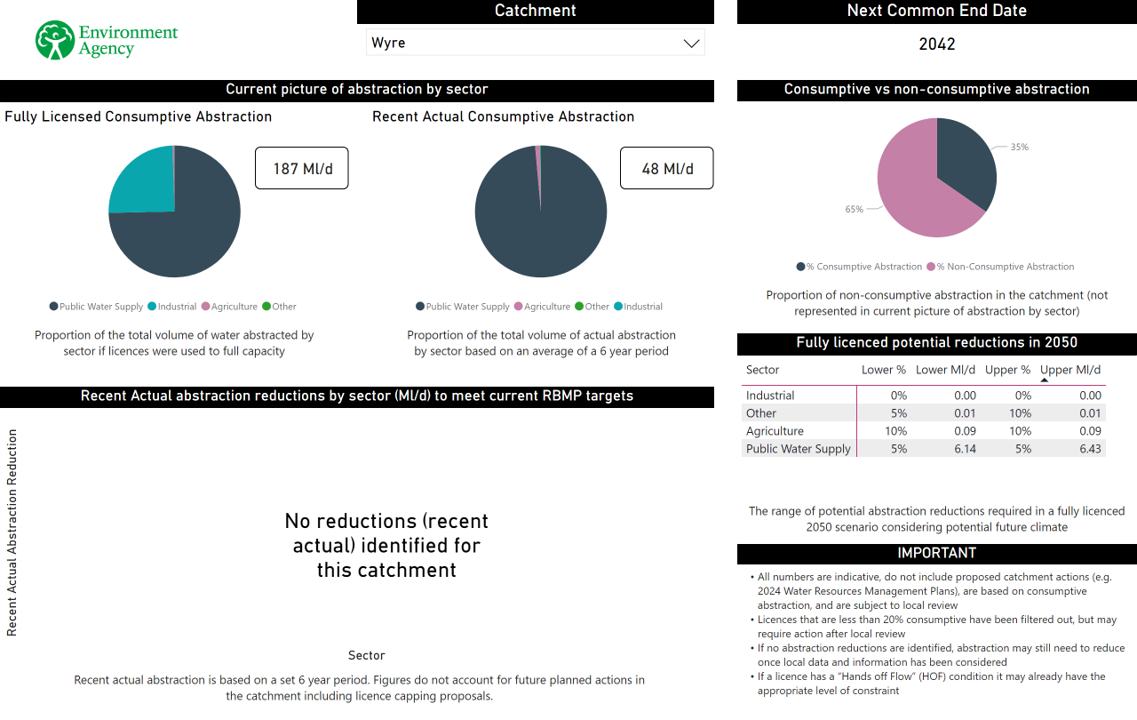

Wyre
Accessible version here
Catchment Summary Wyre
1. Catchment Information
Catchment: Wyre
Next Common End Date: 2042
2. Current Picture of Abstraction by Sector
Fully Licensed Consumptive Abstraction: 187 ML/d
Proportion of the total volume of water abstracted by sector if licences were used to full capacity:
• Public Water Supply: 75%
• Industrial: 25%
• Agriculture: 0%
• Other: 0%
Recent Actual Consumptive Abstraction: 48 ML/d
Proportion of the total volume of actual abstraction by sector based on an average of a 6 year period:
• Public Water Supply: 99%
• Industrial: 0%
• Agriculture: 1%
• Other: 0%
3. Consumptive vs Non-Consumptive Abstraction
Proportion of non-consumptive abstraction in the catchment (not represented in current picture of abstraction by sector):
• Consumptive Abstraction: 35%
• Non-Consumptive Abstraction: 65%
4. Recent Actual Abstraction Reductions by Sector (ML/d) to Meet Current RBMP Targets
No reductions (recent actual) identified for this catchment
Recent actual abstraction is based on a set 6 year period. Figures do not account for future planned actions in the catchment including licence capping proposals.
5. The range of potential abstraction reductions required in a fully licensed 2050 scenario considering potential future climate
Sector | Lower % | Lower ML/d | Upper % | Upper ML/d |
Industrial | 0% | 0 | 0% | 0 |
Other | 5% | <1 | 10% | <1 |
Agriculture | 10% | <1 | 10% | <1 |
Public Water Supply | 5% | 6 | 5% | 6 |
6. Important Notes
• All numbers are indicative, do not include proposed catchment actions (e.g. 2024 Water Resources Management Plans), are based on consumptive abstraction, and are subject to local review
• Licences that are less than 20% consumptive have been filtered out, but may require action after local review
• If no abstraction reductions are identified, abstraction may still need to reduce once local data and information has been considered
• If a licence has a “Hands off Flow” (HOF) condition it may already have the appropriate level of constraint

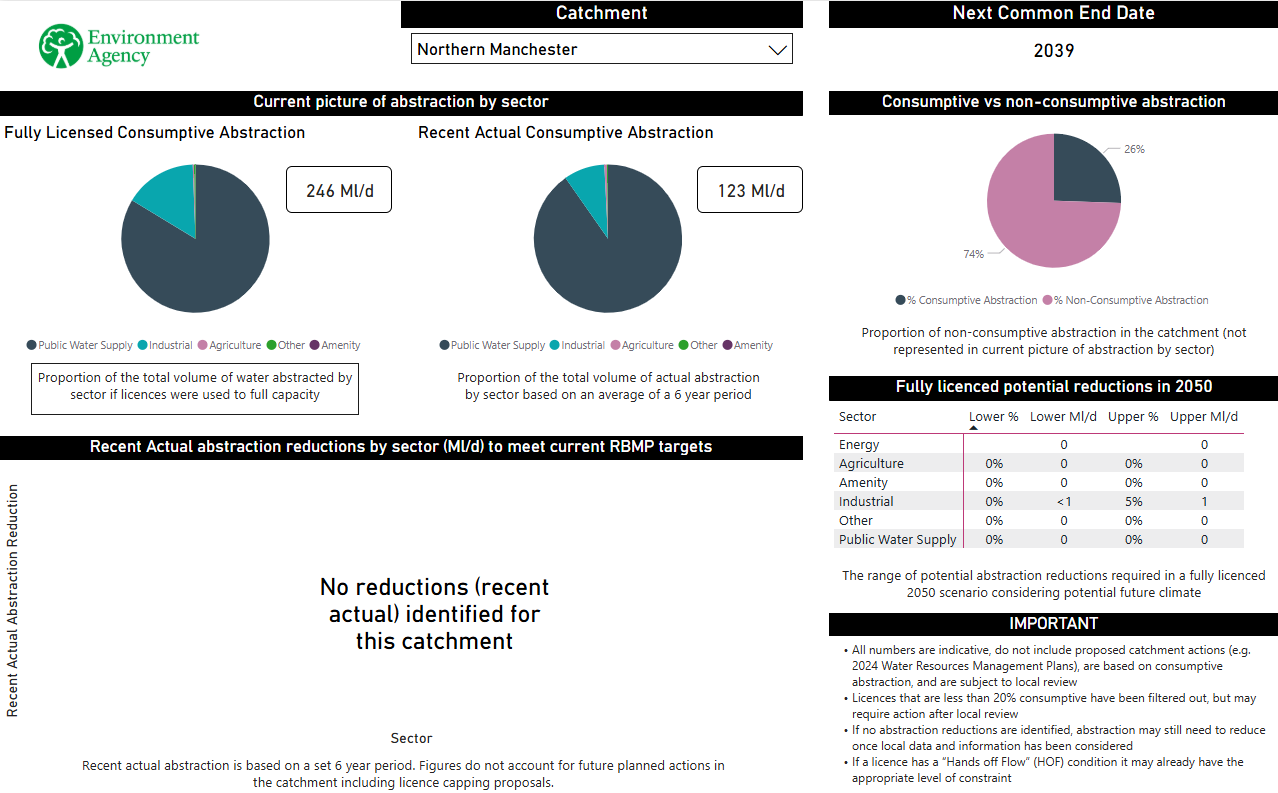

Northern Manchester
Accessible version here
Catchment Summary Northern Manchester
1. Catchment Information
Catchment: Northern Manchester
Next Common End Date: 2039
2. Current Picture of Abstraction by Sector
Fully Licensed Consumptive Abstraction: 246 Ml/d
Proportion of the total volume of water abstracted by sector if licences were used to full capacity:
- Public Water Supply: 84%
- Industrial: 16%
- Agriculture: 0%
- Other: 0%
- Amenity: 0%
Recent Actual Consumptive Abstraction: 123 Ml/d
Proportion of the total volume of actual abstraction by sector based on an average of a 6 year period:
- Public Water Supply: 90%
- Industrial: 9%
- Other: 0%
- Agriculture: 1%
- Amenity: 0%
3. Consumptive vs Non-Consumptive Abstraction
Proportion of non-consumptive abstraction in the catchment (not represented in current picture of abstraction by sector):
- Consumptive Abstraction: 26%
- Non-Consumptive Abstraction: 74%
4. Recent Actual Abstraction Reductions by Sector (ML/d) to Meet Current RBMP Targets
No reductions (recent actual) identified for this catchment
Recent actual abstraction is based on a set 6 year period. Figures do not account for future planned actions in the catchment including licence capping proposals.
5. The range of potential abstraction reductions required in a fully licensed 2050 scenario considering potential future climate
Sector | Lower % | Lower Ml/d | Upper % | Upper Ml/d |
Agriculture | 0% | 0 | 0% | 0 |
Amenity | 0% | 0 | 0% | 0 |
Other | 0% | 0 | 0% | 0 |
Industrial | 0% | <1 | 5% | 1 |
Public Water Supply | 0% | 0 | 5% | 12 |
6. Important Notes
- All numbers are indicative, do not include proposed catchment actions (e.g. 2024 Water Resources Management Plans), are based on consumptive abstraction, and are subject to local review
- Licences that are less than 20% consumptive have been filtered out, but may require action after local review
- If no abstraction reductions are identified, abstraction may still need to reduce once local data and information has been considered
- If a licence has a "Hands off Flow" (HOF) condition it may already have the appropriate level of constraint

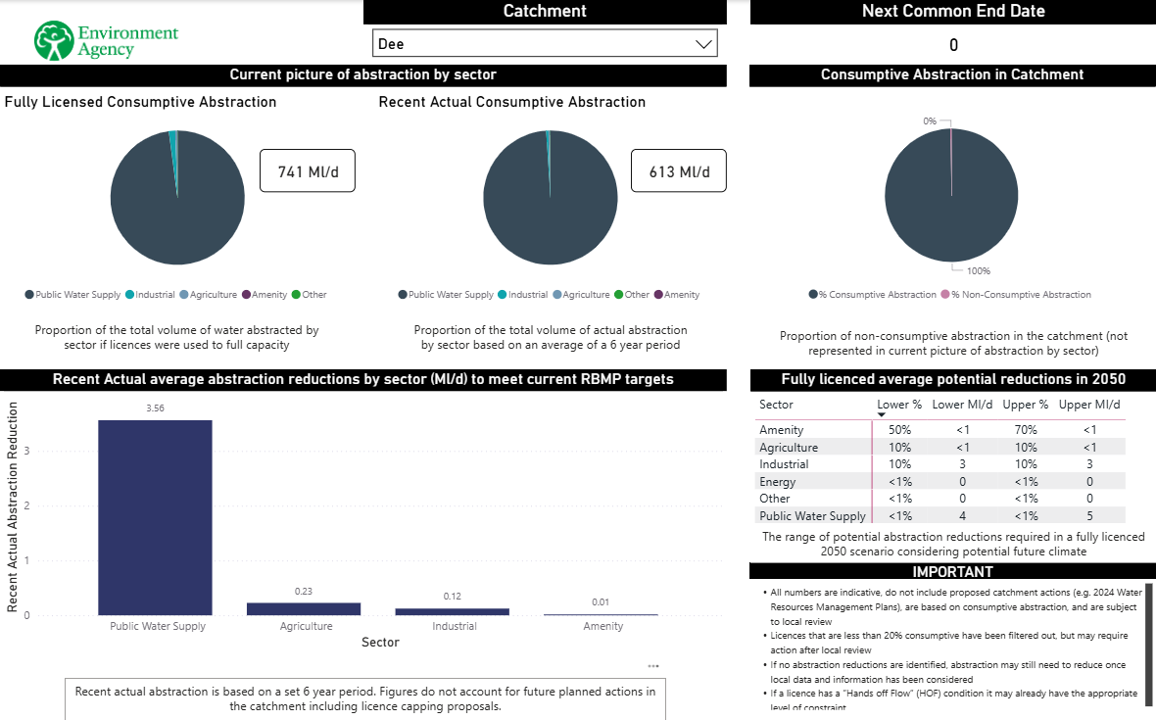

Dee (England only)
Catchment Summary Dee
1. Catchment Information
Catchment: Dee
Next Common End Date: 0
2. Current Picture of Abstraction by Sector
Fully Licensed Consumptive Abstraction: 741 Ml/d
Proportion of the total volume of water abstracted by sector if licences were used to full capacity:
Recent Actual Consumptive Abstraction: 613 Ml/d
Proportion of the total volume of actual abstraction by sector based on an average of a 6-year period:
3. Consumptive vs Non-Consumptive Abstraction
Proportion of non-consumptive abstraction in the catchment (not represented in current picture of abstraction by sector):
4. Recent Actual Abstraction Reductions by Sector (Ml/d) to Meet Current RBMP Targets
Recent actual abstraction is based on a set 6-year period.
Figures do not account for future planned actions in the catchment including licence capping proposals.
Recent Actual average reductions identified:
5. The range of potential abstraction reductions required in a fully licensed 2050 scenario considering potential future climate
Sector | Lower % | Lower Ml/d | Upper % | Upper Ml/d |
Amenity | 50% | <1 | 70% | <1 |
Agriculture | 10% | <1 | 10% | <1 |
Industrial | 10% | 3 | 10% | 3 |
Energy | <1% | 0 | <1% | 0 |
Other | <1% | 0 | <1% | 0 |
Public Water Supply | <1% | 4 | <1% | 5 |
6. Important Notes
